MFS50

Mid-Range Series
MFS50

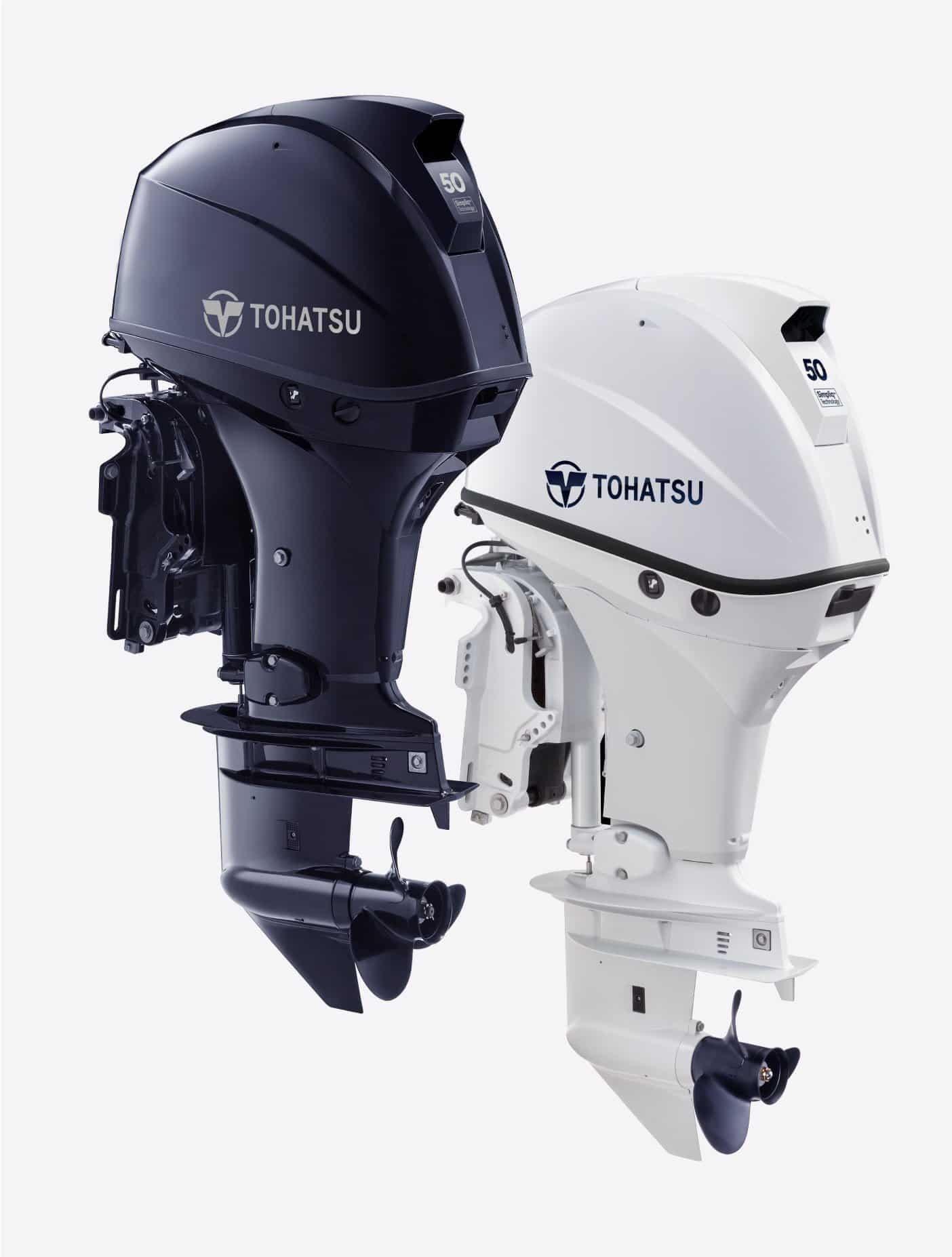

What is the one thing every boater looks for in an outboard motor? The lightest weight motor possible. Tohatsu’s 50hp four stroke now comes in a second color option, Beluga White, allowing boaters to choose which engine color best fits their boat. You asked and we listened by outfitting the 50hp EFI four stroke with an improved gear case with a lower gear ratio, giving you the increased low end torque your boat needs.

This outboard also has variable idling speed control from 650 to 950rpm’s. And the MFS50’s stainless steel water pump housing liner gives you outstanding durability. With the 50hp four stroke’s power to quickly reach your destination, exceptional fuel performance to keep gas costs down and proven electronic fuel injection technology for worry-free boating, you’ve never had a day on the water quite like this.



Engine 4 Stroke 3 Cylinder
Output 50 ps (36.8 kw)
Displacement 866 cc (52.9 cu.in.)
Bore x Stroke 70 x 75 mm (2.76 x 2.95 in)
Max. RPM Range 5,000 – 6,000
Starting Electric
Control Type Remote Control or Tiller Handle
Gear Shift Forward – Neutral – Reverse
Gear Ratio 2.08:1 (13:27)
Propeller Selection Range 7″ – 17″
Transom Height 15″, 20″
Fuel Unleaded Gasoline (87 Octane) or higher
Oil Type NMMA Certified FC-WR 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 2.4L (0.63 US Gal.) w/filter
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 95 kg (209 lbs.)
Alternator Output 12V, 252W, 21A
Digital ECU Controlled Ignition System Standard
Electronic Fuel Injection Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer Standard
Oil Pressure Warning Standard
Power Trim and Tilt Option
Gas Assyst Tilt Option
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.

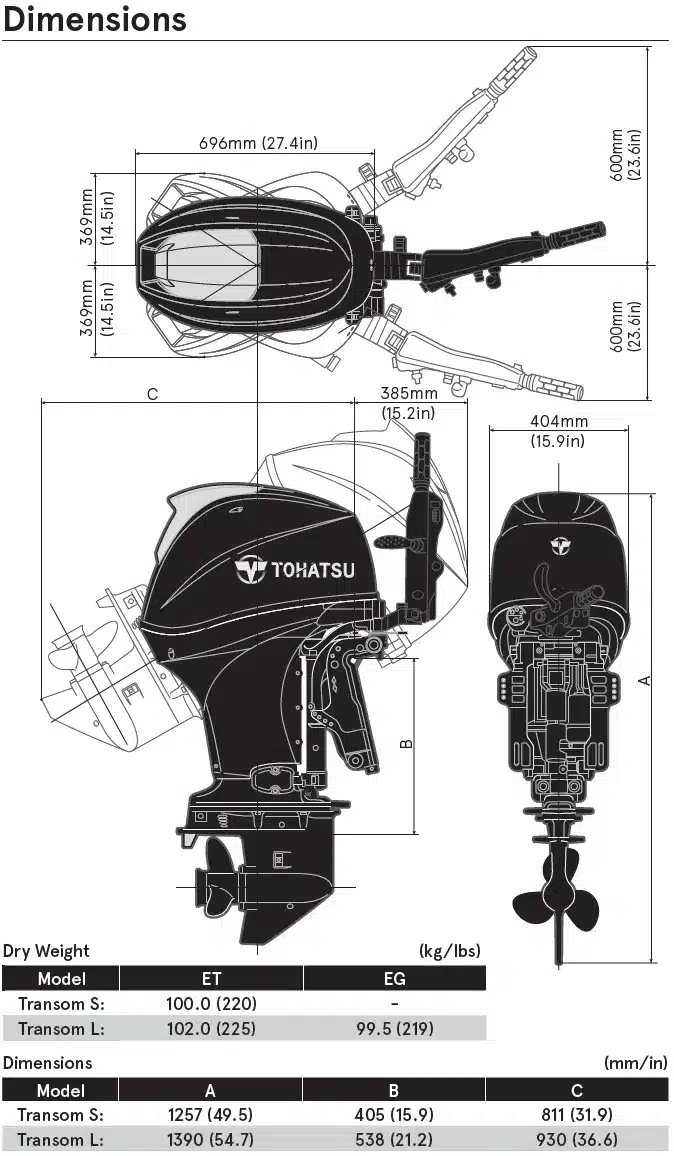

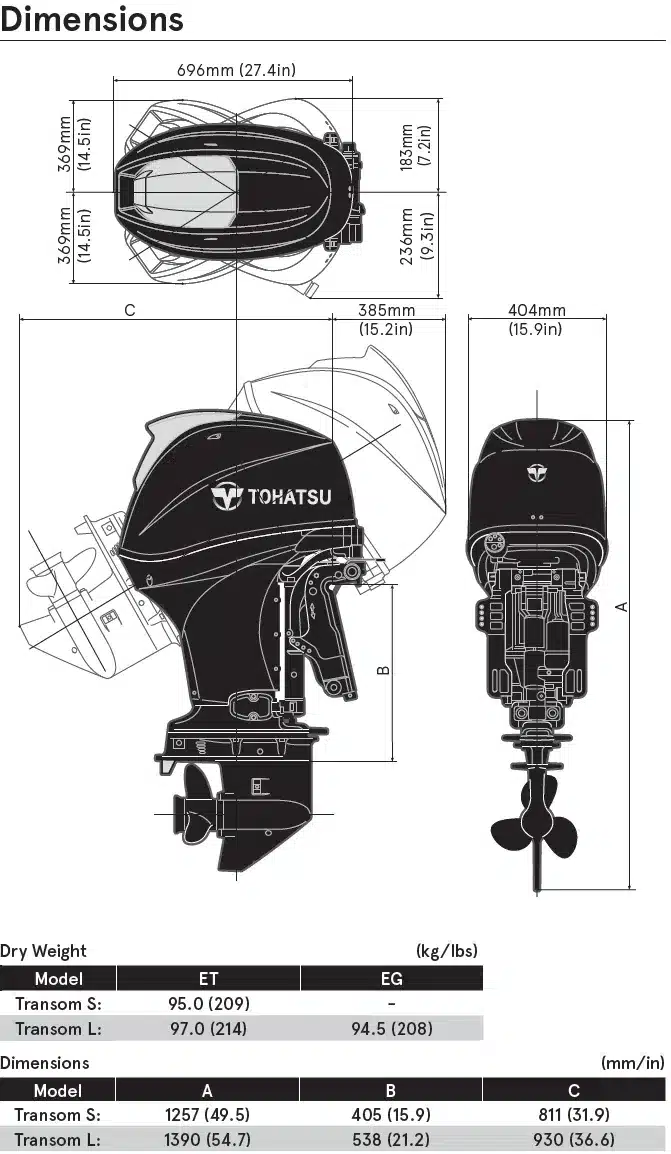

MFS50 Dimensions MFS50 Dimensions

Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Power
Trim &Tilt
Remote Fuel Tank Propeller Gass Assyst Tilt
MFS50AETS 15″ 3 S See Note See Note S S S O
MFS50AETL 20″ 3 S See Note See Note S S S S
MFS50AEGL 20″ 3 S See Note See Note S S S S
MFS50AWETL 20″ 3 S See Note See Note S S S S
S: Standard
Note : Control type can be chosen from multi function tiller, basic tiller and remote control.

Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
