MFS140

Mid-Range Series
MFS140

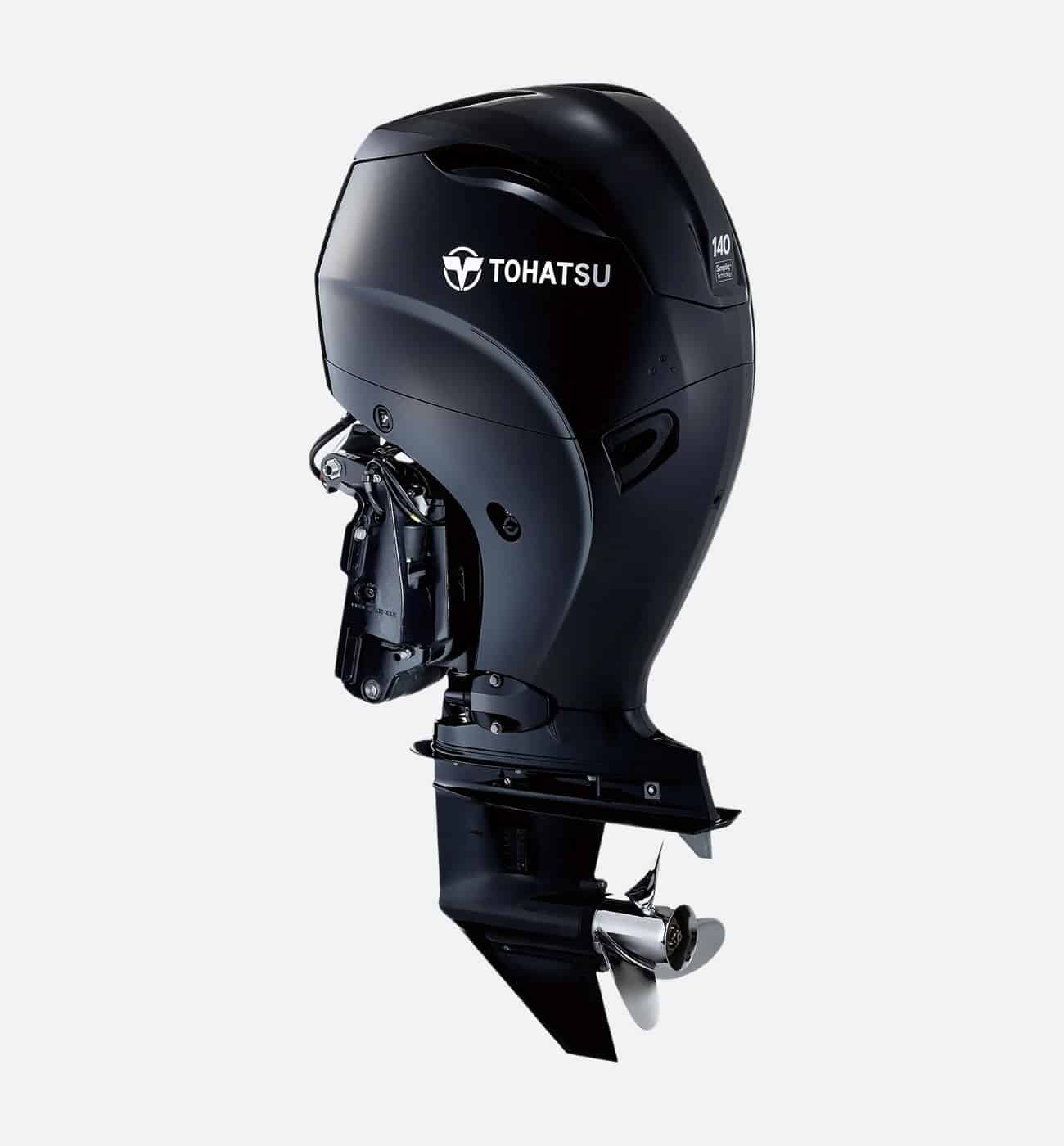

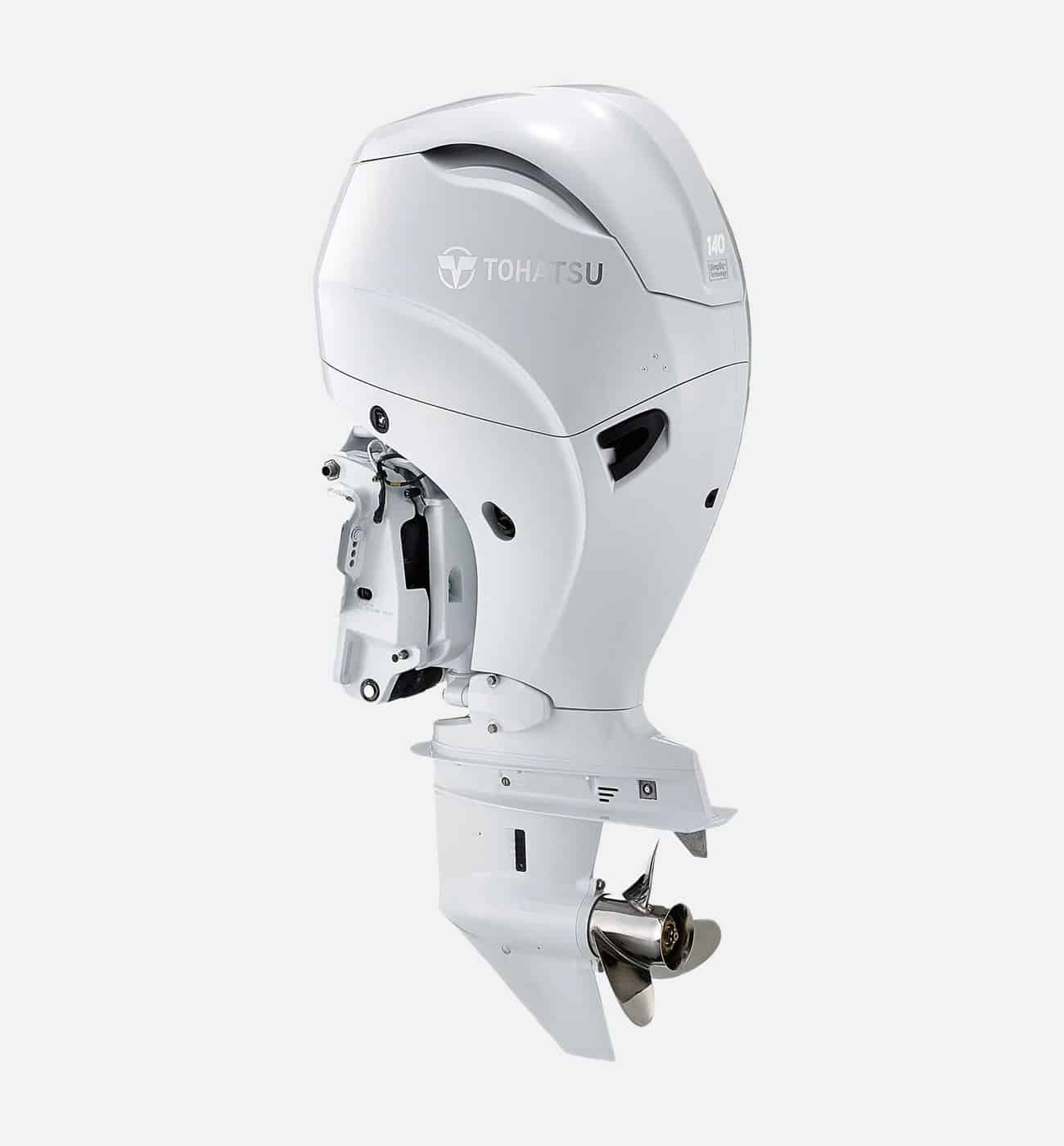

Our recently introduced line-up of MFS75-115A has expanded to 140 horsepower. With a dynamic design and sophisticated details, the MFS140A provides outstanding torque, increased durability, optimized weight and smooth operation.

Our unique and industry-first 4-2-1 Performance Tuned Exhaust manifold has been designed to maximize low end torque and acceleration performance. Best in class torque to displacement ratio creates excellent performance for all styles of boats from light to heavy weight, pleasure or commercial use. On certain boat applications, the MFS140A will perform similarly when compared to heavier 150 horsepower outboards that weigh as much as 100 pounds more.

Engineered with Simpliq™ Technology, the MFS140A has a SOHC-4V design. The spark plugs are strategically placed in the center of each combustion chamber for the most efficient combustion with optimal heat conduction, which results in strong running and fuel efficiency.

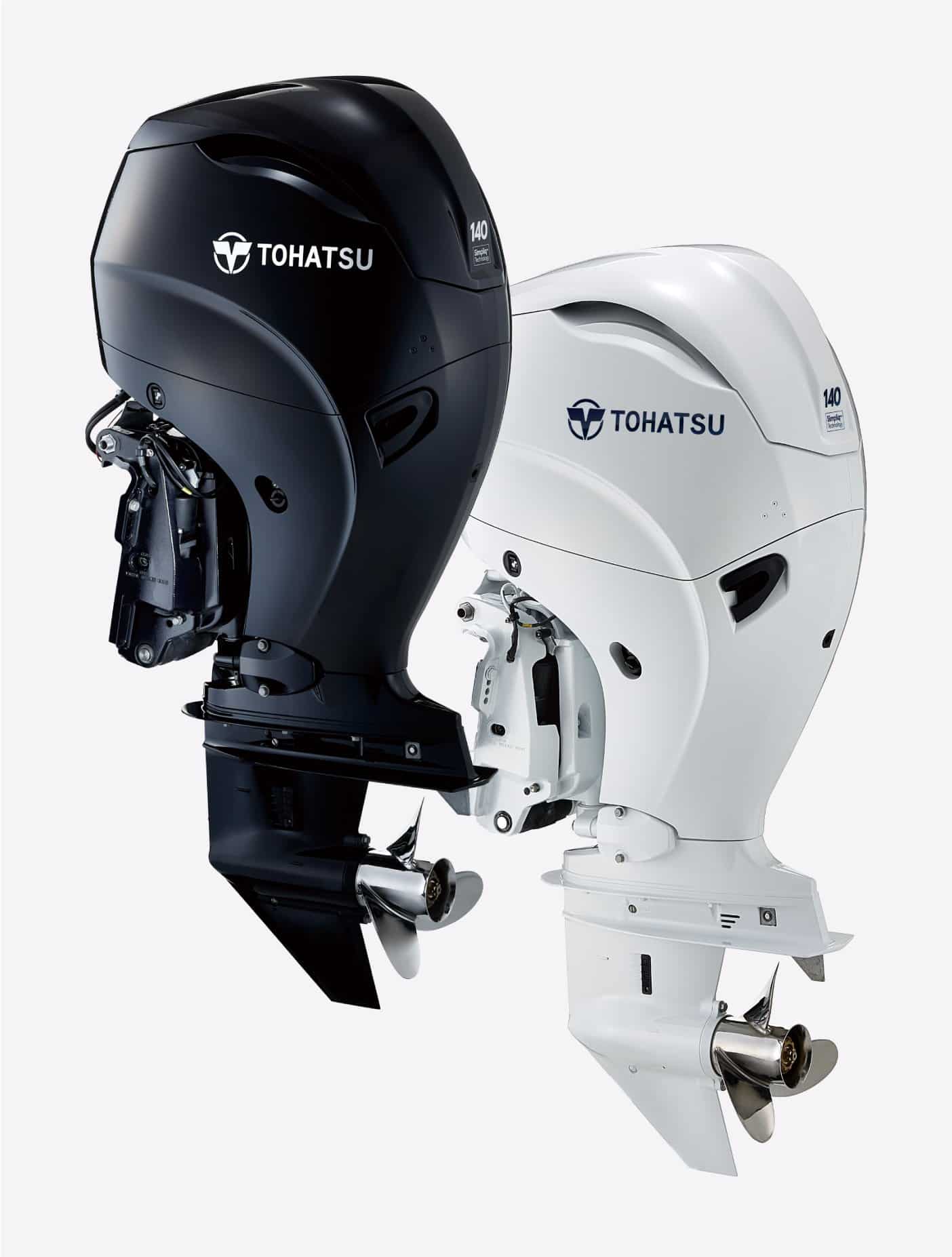

With the introduction of MFS140A counter-rotation model, the combination of standard and counter rotation models provides better maneuverability and stability in twin MFS140A applications.

Standard features include:
•Variable Idle System to adjust the idle RPMs from 650 to 850, in 50 RPM increments, for better trolling control
•Low gear ratio (2.08:1) provides low end torque and better top end performance
•Fresh-water Flushing System designed to make routine flushing easier
•High Output 41 amp Alternator

The MFS140A provides top performance you can only experience with Tohatsu.

Engine 4 Cylinder
Output 140 hp (103.0 kw)
Displacement 1995 cc (121.6 cu.in.)
Bore x Stroke 84 x 90 mm (3.30 x 3.55 in)
Max. RPM Range 5,150 – 5,850
Starting Electric
Control Type Remote Control or Tiller Handle
Gear Shift Forward – Neutral – Reverse
Gear Ratio 2.08:1
Ignition System MicroComputer Programmed
Transom Height 20″, 25″
Fuel Unleaded Gasoline (87 Octane) or higher
Oil Type NMMA Certified FC-W® 4-stroke oil**
Oil Capacity 4.2 L (1.11 gal.) w/filter
Weight* 178 kg (392 lbs.)
Alternator Output 12V, 492W, 41A
Electronic Fuel Injection Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer Standard
Oil Pressure Warning Standard
Power Trim and Tilt Standard
Variable Idle Speed Standard
* Weight specification is based on the lightest version.
** FC-W® is a registered trademark of the National Marine Manufacturers Assoc. (NMMA)
Specifications and descriptions are subject to change without notice.
Model Shaft Length Cylinders Electric Start Tiller Handle Remote Control 12V Charging
System
Power
Trim &Tilt
Counter Rotation
MFS140AETL 20 4 S See Note See Note S S
MFS140AETUL 25 4 S See Note See Note S S
MFS140AETCUL 25 4 S See Note See Note S S S
MFS140AWETL 20 4 S See Note See Note S S
MFS140AWETUL 25 4 S See Note See Note S S
MFS140AWETCUL 25 4 S See Note See Note S S S

S: Standard
Note : Control type can be chosen from multi function tiller and remote control.

Specifications subject to change without notice. Additional models and/or configurations may be available. Contact your local dealer for details.
