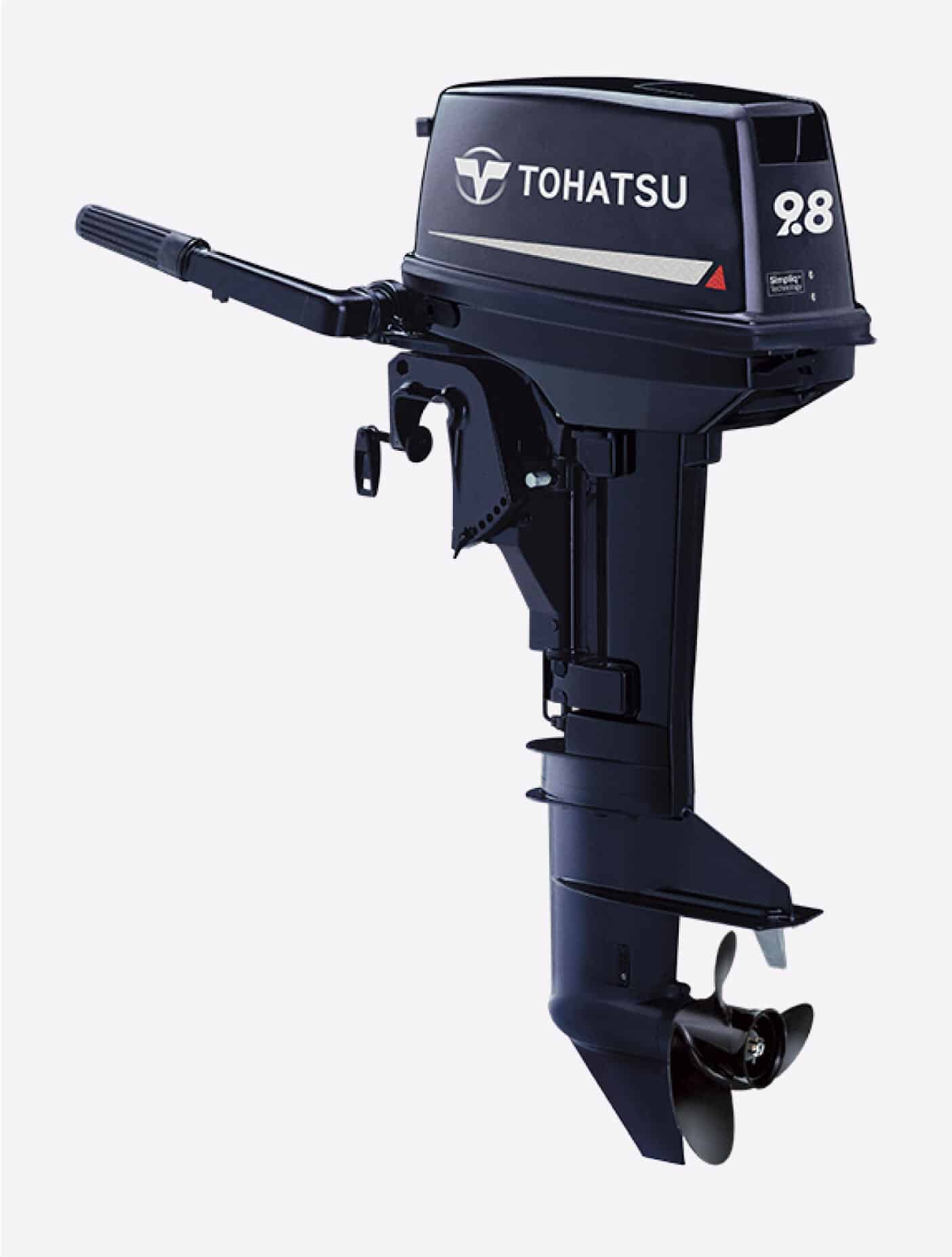

The Tohatsu M9.8 gives boaters exactly what they need: more power and less weight! This truly portable model offers an incredible horsepower-to-weight ratio, led by the Tohatsu 9.8 2-stroke at just over 26 kgs. Whatever your boating application, these are the ultimate outboards for convenience, reliability and portability.
| Engine | 2 Stroke 2 Cylinder |
|---|---|
| Output | 9.8 ps (7.2 kw) |
| Displacement | 169 cc |
| Bore x Stroke | 50 x 43 mm |
| Max. RPM Range | 5,000 – 6,000 |
| Starting | Electric or Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.08:1 (13:27) |
| Ignition System | ATDC1゜- BTDC17゜ |
| Propeller Selection Range | 5″ – 9.5″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Petrol (87 Octane) |
| Oil Type | Genuine recommended 2 stroke engine oil (TCW-3) |
| Fuel Tank | 12 L Separate Fuel Tank |
| Weight* | 26.0 Kg |
| Alternator Output | Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | 12V Charging System | Remote Fuel Tank | Propeller | |
|---|---|---|---|---|---|---|---|---|
| M9.8BS | 15″ | 2 | S | S | S | |||
| M9.8BL | 20″ | 2 | S | S | S | |||
| M9.8BEFS | 15″ | 2 | S | S | S | S | S | |
| M9.8BEFL | 20″ | 2 | S | S | S | S | S |
