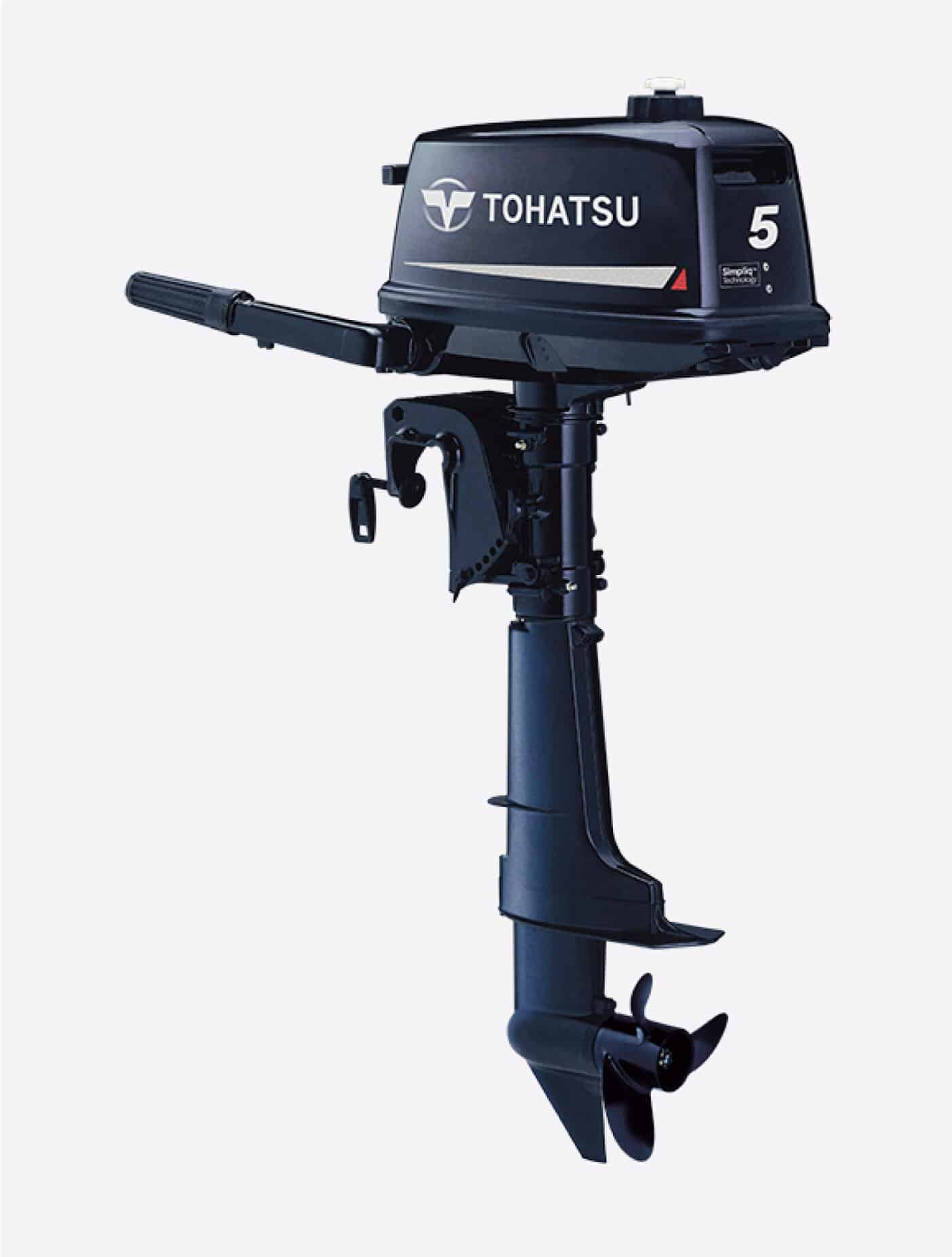

The Tohatsu M5 gives boaters exactly what they need: more power and less weight! This truly portable model offers an incredible horsepower-to-weight ratio. These are the ultimate outboards for convenience and portability. The 4 2-stroke weighs only 20 kgs! Wherever you’re going, there’s a little Tohatsu to take with you!
| Engine | 2 Stroke 1 Cylinder |
|---|---|
| Output | 5 ps |
| Displacement | 102 cc |
| Bore x Stroke | 55 x 43 mm |
| Max. RPM Range | 4,500 – 5,500 |
| Starting | Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.15:1 (13:28) |
| Propeller Selection Range | 6″ – 9″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Petrol (87 Octane) |
| Oil Type | Genuine recommended 2stroke engine oil (TCW-3) |
| Fuel Tank | 2.5 L Integral Tank |
| Weight* | 20.0 Kg |
| Alternator Output | Optional: 12V, 60W, 5A |
| Start In Gear Protection | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
| Model | Shaft Length | Cylinders | Tiller Handle | Remote Fuel Tank | Propeller | |||
|---|---|---|---|---|---|---|---|---|
| M5BDS | 15″ | 1 | S | S | S | |||
| M5BDL | 20″ | 1 | S | S | S | |||
