Tohatsu 2-strokes are world famous for their reliability, terrific-horsepower-to-weight ratios and top-of-the-line performances!
This in-line 3-cylinder outboard provide all of the extra features you want and need without compromising Tohatsu’s well-known quality.

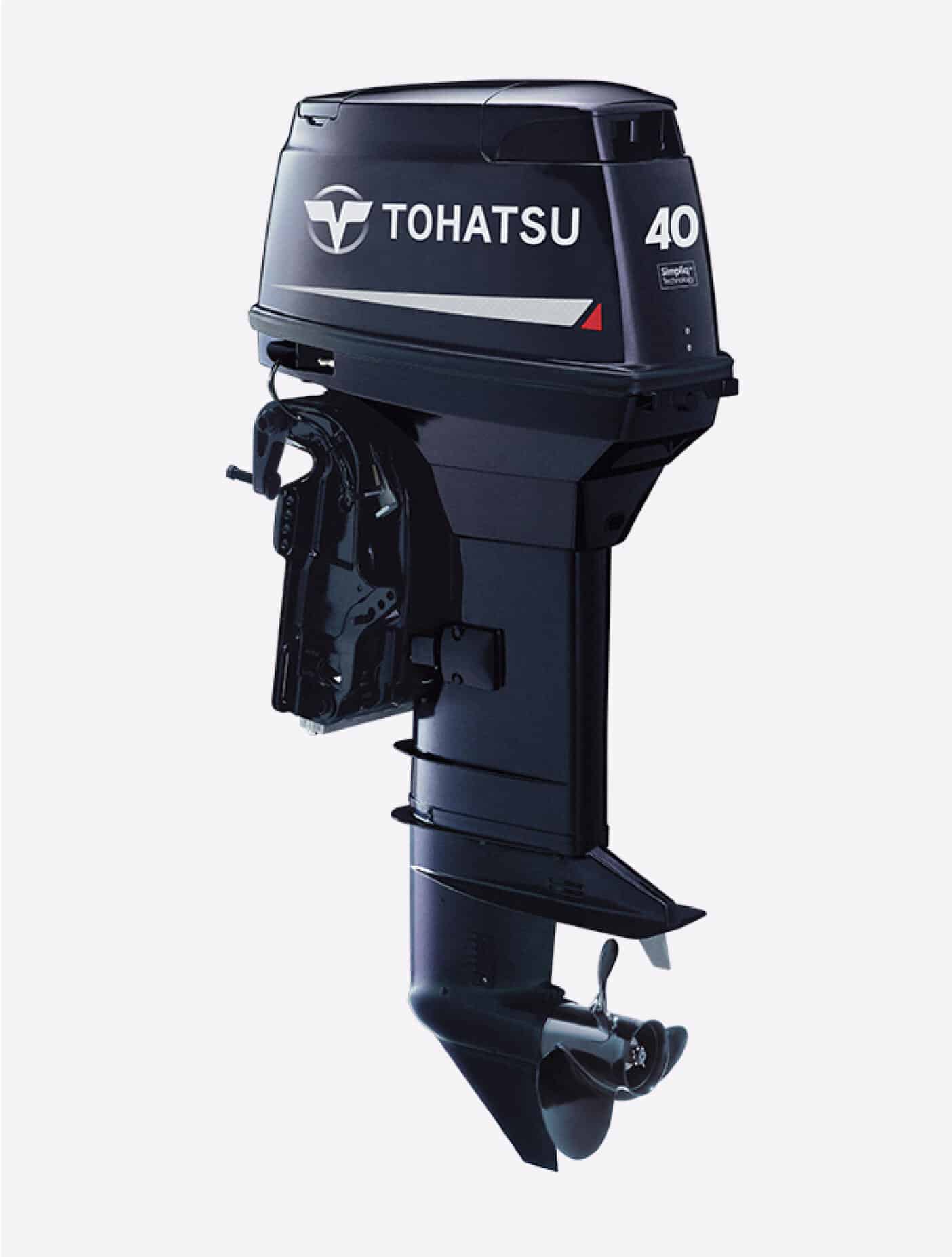

The M40 will give you performance and reliability for your long days of boating pleasure.
| Engine | 2 Stroke 3 Cylinder |
|---|---|
| Output | 40 hp (29.4 kw) |
| Displacement | 697 cc |
| Bore x Stroke | 68 x 64 mm |
| Max. RPM Range | 5,000 – 5,700 |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 1.85 (13:24) |
| Propeller Selection Range | 7″ – 15″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Petrol (87 Octane) |
| Oil Type | Genuine recommended 2 stroke engine oil (TCW-3) |
| Oil Capacity | 2 |
| Fuel Tank | 25 L Separate Fuel Tank |
| Weight* | 72.0 Kg |
| Alternator Output | Optional: 12V, 130W, 11A (Standard on Electric Start Model) |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Overheat Buzzer | O |
| Power Trim and Tilt | O |
| Shallow Water Drive | O |
| Engine lubrication system | Premixed Fuel |
| Model | Shaft Length | Cylinders | Electric Start | Tiller Handle | Remote Control | 12V Charging Systems | Power Trim & Tilt | Oil Injection | Tachometer | Remote Fuel Tank | Propeller |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M40D2S | 15″ | 3 | S | S | S | ||||||
| M40D2L | 20″ | 3 | S | S | S | ||||||
| M40D2EPTOL | 15″ | 3 | S | S | S | S | S | S | S | S | |
