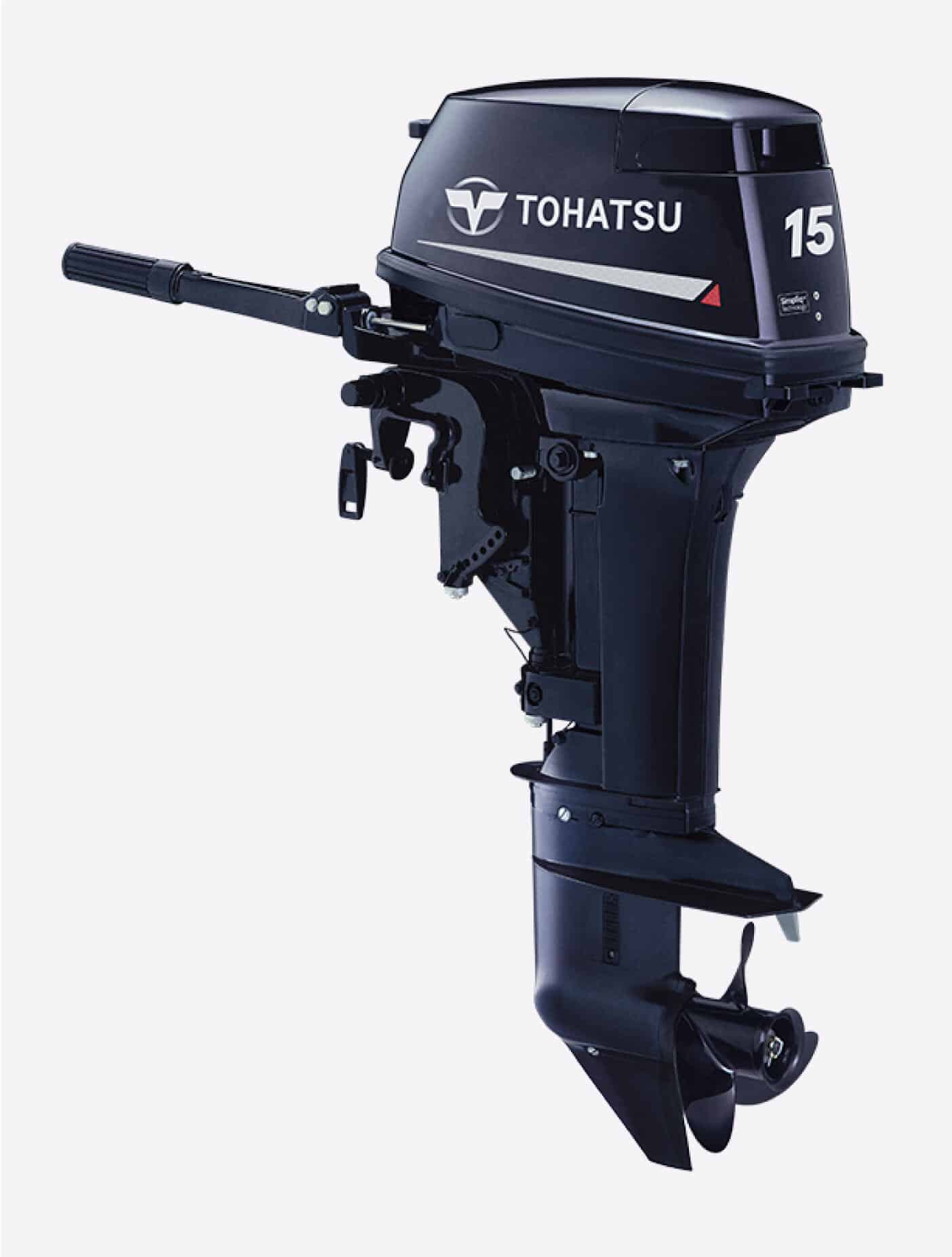

The Tohatsu M15 gives boaters exactly what they need in a mid-range portable: more power and less weight! This portable model offers an incredible horsepower-to-weight ratio. Whatever your boating application, this is the ultimate outboard for convenience, reliability and portability.
| Engine | 2 Stroke 2 Cylinder |
|---|---|
| Output | 15 hp (11.0 kw) |
| Displacement | 247 cc |
| Bore x Stroke | 55 x 52 mm (2.17 x 2.05 in) |
| Max. RPM Range | 5,200 – 5,800 |
| Starting | Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 1.85:1 (13:24) |
| Propeller Selection Range | 6″ – 11.5″ |
| Transom Height | 15″, 20″ |
| Fuel | Unleaded Petrol (87 Octane) |
| Oil Type | Genuine recommended 2 stroke engine oil (TCW-3) |
| Fuel Tank | 25 L Separate Fuel Tank |
| Weight* | 41 Kg |
| Alternator Output | Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
| Model | Shaft Length | Cylinders | Tiller Handle | Remote Fuel Tank | Propeller | |||
|---|---|---|---|---|---|---|---|---|
| M15D2S | 15″ | 2 | S | S | S | |||
| M15D2L | 20″ | 2 | S | S | S | |||
